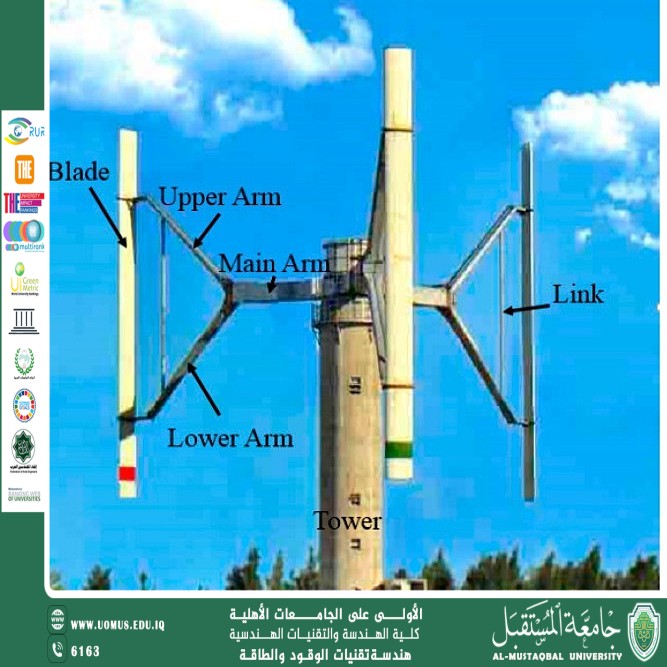

Optimization of Vertical Axis Wind Turbines (VAWT) Using ANSYS CFD Tools<br />Dr. Firas Thair Al-Maliky<br /><br />Sustainable Development Goals (SDGs)<br />Goal 7: Affordable and Clean Energy<br />Goal 9: Industry, Innovation, and Infrastructure<br />Goal 11: Sustainable Cities and Communities<br />Goal 13: Climate Action<br /><br />Vertical Axis Wind Turbines (VAWTs) are an increasingly attractive alternative to Horizontal Axis Wind Turbines (HAWTs), especially in urban environments and areas with variable wind directions. Their compact design, ability to capture wind from any direction, and easier maintenance make them suitable for decentralized energy systems. However, optimizing their aerodynamic performance remains a key challenge. Computational Fluid Dynamics (CFD) tools, particularly those available in ANSYS, provide powerful capabilities to analyze and enhance the performance of VAWTs.<br /><br />Why Optimize VAWTs?<br />VAWTs typically suffer from lower efficiency compared to their horizontal counterparts due to dynamic stall and lower tip speed ratios. Optimization aims to improve parameters such as:<br />Power output<br />Starting torque<br />Structural stability<br />Efficiency at varying wind speeds<br />Role of ANSYS CFD Tools in Optimization<br />ANSYS Fluent and CFX offer robust solvers and visualization tools for simulating fluid flow and aerodynamic behavior around rotating blades. The typical VAWT optimization process using ANSYS includes:<br /><br />1. Geometry Creation<br />A detailed CAD model of the turbine is developed, including blade shape (e.g., H-type or Darrieus), shaft, and support structures.<br />2. Meshing<br />High-quality structured or unstructured meshes are generated to ensure accurate resolution of boundary layers and flow separation regions, especially near blade surfaces.<br />3. Boundary Conditions and Solver Setup<br />Inlet wind velocity is defined based on realistic site data.<br />Turbulence models like SST k-ω are selected to capture flow separation and reattachment accurately.<br />Rotating reference frames or sliding mesh techniques are used to model the blade rotation.<br />4. Simulation and Analysis<br />The simulation provides insights into pressure distribution, velocity contours, wake behavior, and turbulence intensity. Key performance indicators such as torque coefficient (C_T) and power coefficient (C_P) are extracted.<br />5. Design Optimization<br />By analyzing different design parameters—such as blade chord length, number of blades, pitch angle, and rotor diameter—designs are iteratively refined to maximize aerodynamic efficiency.<br /><br />Key Findings and Improvements<br />Blade Profile Effects: Airfoil shape significantly influences lift and drag forces; symmetric airfoils generally offer better performance at low Reynolds numbers.<br />Number of Blades: Increasing blade count improves starting torque but may reduce efficiency due to flow interference.<br />Tip Speed Ratio (TSR): Optimal TSR is critical for maximizing power output. Simulations help identify ideal operating points.<br />Dynamic Stall Control: CFD tools help visualize and mitigate the effects of dynamic stall using blade modifications or control systems.<br />Benefits of Using ANSYS for VAWT Optimization<br />Visualization: Detailed flow visualization helps understand complex unsteady aerodynamic phenomena.<br />Design Efficiency: Faster iterations and virtual testing reduce the need for expensive prototypes.<br />Scalability: Designs can be easily scaled or modified for different wind conditions and installation sites.<br />Multiphysics Capability: ANSYS enables coupling with structural and thermal analyses for more comprehensive turbine design.<br />Challenges and Future Work<br />Unsteady Simulations: Time-accurate simulations require significant computational resources.<br />Validation: CFD models must be validated against wind tunnel or field data for accuracy.<br />Hybrid Turbines: Future research may explore hybrid VAWT-HAWT systems or integrated energy solutions.<br /><br />Conclusion<br />Optimization of VAWTs using ANSYS CFD tools provides a detailed understanding of aerodynamic performance and supports design improvements for efficient renewable energy generation. Through accurate modeling, simulation, and analysis, engineers can enhance VAWT performance, contributing to sustainable energy solutions for modern cities and communities.<br /><br />Al-Mustaqbal University – The No. 1 Private University in Iraq
