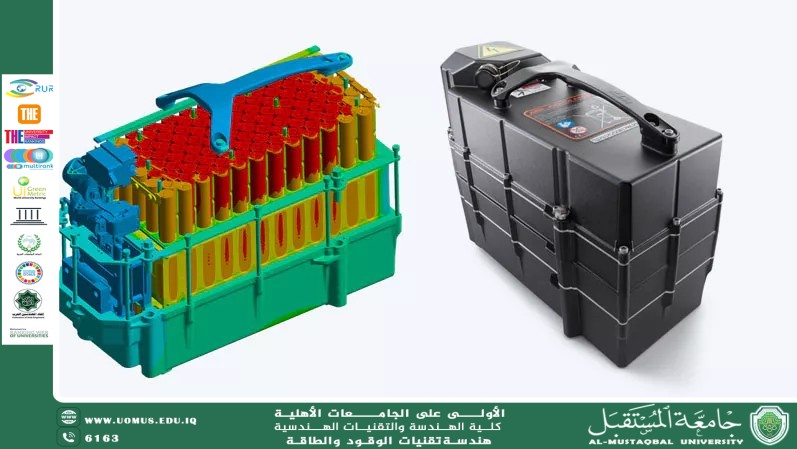

Modeling and Simulation of Battery Thermal Management Systems in ANSYS Workbench<br />Dr. Firas Thair Al-Maliky<br /><br />Sustainable Development Goals (SDGs)<br />Goal 7: Affordable and Clean Energy<br />Goal 9: Industry, Innovation, and Infrastructure<br />Goal 11: Sustainable Cities and Communities<br />Goal 13: Climate Action<br /><br />As electric vehicles (EVs) and renewable energy storage systems become more widespread, effective Battery Thermal Management Systems (BTMS) are critical to ensure safety, performance, and battery longevity. Lithium-ion batteries are sensitive to temperature variations, and without proper thermal regulation, they are prone to thermal runaway, degradation, or failure. Modeling and simulating BTMS in ANSYS Workbench enables engineers to predict thermal behavior and optimize system designs before physical prototypes are built.<br />Why Battery Thermal Management Matters<br />Safety: Prevents overheating and thermal runaway.<br />Performance: Ensures consistent power output and charging efficiency.<br />Longevity: Reduces degradation rate and extends battery life.<br />Efficiency: Balances energy used for thermal regulation with overall system performance.<br />ANSYS Workbench: A Multiphysics Approach<br />ANSYS Workbench integrates thermal, fluid, and structural simulations, making it ideal for evaluating different BTMS designs. The typical simulation process includes the following steps:<br />1. Battery Pack Geometry and Setup<br />The battery pack—comprising cells, cooling plates, and casing—is modeled in 3D. Battery modules can be prismatic, cylindrical, or pouch-type, depending on the application.<br />Material properties for the cells and coolant are assigned.<br />Heat generation is estimated from battery discharge rates or electrochemical models.<br />2. Meshing and Boundary Conditions<br />High-quality meshing ensures accurate temperature gradients, especially within the battery cells. Proper boundary conditions are applied, such as:<br />Ambient temperature<br />Heat flux from cell activity<br />Inlet velocity and temperature for active cooling systems<br />3. Thermal Simulation Scenarios<br />Simulations are performed for various operating conditions:<br />Passive cooling: Natural convection and radiation<br />Active air cooling: Fans directing airflow through battery channels<br />Liquid cooling: Coolant circulated via channels or cold plates<br />Phase Change Materials (PCM): Absorbing excess heat during high load conditions<br />The simulations predict temperature distribution, hot spots, and cooling efficiency across the battery modules.<br />4. Coupled Analysis and Optimization<br />ANSYS allows coupled thermal-fluid simulations using ANSYS Fluent or CFX for fluid dynamics, and ANSYS Mechanical for thermal stress and deformation analysis.<br />Design optimization tools in Workbench help refine variables such as:<br />Coolant flow rate<br />Channel geometry<br />Fan speed<br />Material selection<br />Key Outcomes and Design Insights<br />Uniform Temperature Distribution: Achieving minimal temperature gradients across cells is crucial to performance.<br />Cold Plate Efficiency: Simulations help compare single-phase and two-phase cooling methods.<br />Material Impact: Using materials with high thermal conductivity improves heat dissipation.<br />Design Iteration Speed: Virtual testing reduces time and cost compared to physical prototypes.<br />Challenges and Future Trends<br />Complexity: Accurate battery thermal models require detailed input from electrochemical models.<br />Real-Time Simulation: Integration with control systems for real-time thermal feedback is still developing.<br />Next-Gen Batteries: Solid-state batteries may need entirely new thermal approaches.<br />AI Integration: Machine learning is being explored to optimize BTMS based on simulation data.<br /><br />Conclusion<br />Modeling and simulation of BTMS in ANSYS Workbench play a vital role in the design and optimization of safe, efficient, and durable energy storage systems. Through CFD, thermal, and structural analyses, engineers can anticipate thermal behavior under various load conditions and fine-tune cooling strategies to support the next generation of electric mobility and renewable energy infrastructure.<br /><br /><br /><br />Al-Mustaqbal University – The No. 1 Private University in Iraq
