1. Introduction
In recent years, digital manufacturing has witnessed significant advancements, particularly with the emergence of 3D printing and Computer Numerical Control (CNC) technologies. These tools have revolutionized traditional industries through innovative, efficient, and customizable fabrication methods.
3D printing—also known as additive manufacturing—allows for the construction of complex geometries by layering materials based on pre-designed digital models. CNC, on the other hand, provides precise control over machining tools via computerized instructions, enabling the production of highly accurate professional-grade components.
These technologies have increasingly permeated the optical manufacturing sector, particularly in the production of eyeglass frames. They allow for mass customization, rapid prototyping, cost-effective production, and significant reductions in waste. Of particular interest is the ability to introduce therapeutic modifications such as lens slanting—a structural tilt embedded into the frame to correct mild visual axis deviations (e.g., strabismus or anisometropia), offering not just aesthetic and ergonomic benefits but also clinical advantages.
Research Objectives:
• Investigate the impact of 3D printing and CNC on the quality of eyeglass frame manufacturing.
• Explore frame customization capabilities for individual visual needs.
• Develop a frame-integrated slanting feature without altering the lens itself.
• Compare the performance of different materials used with both technologies.
2. Technologies Utilized
a. 3D Printing and CNC Overview
These methods allow for the precise production of complex parts:

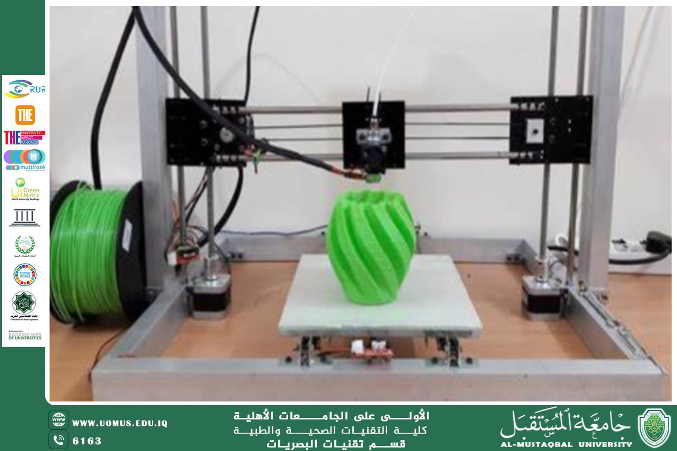

• 3D printing builds models layer-by-layer from STL or OBJ files using software like AutoCAD or SOLIDWORKS.
• CNC machining relies on pre-programmed instructions to control cutting tools, ideal for robust frame components made from wood or reinforced polymers.
b. 3D Printing Materials
• PLA (Polylactic Acid): Biodegradable, rigid, easy to print, but not heat-resistant.
• ABS (Acrylonitrile Butadiene Styrene): Tough, heat-resistant, ideal for daily-use frames.
• Nylon: Highly flexible, impact-resistant, soft texture—suitable for custom ergonomic frames.
• Fiber-reinforced polymers: Lightweight and fracture-resistant (e.g., carbon fiber or fiberglass composites).
• Bio-resins and flexible polyurethane: Soft and shape-retentive materials for enhanced comfort.
3. Manufacturing Workflow
a. Digital Design
Frame design begins in CAD software tailored to custom dimensions and aesthetic features. Designs are exported as STL or OBJ files.
b. Printer Configuration
Layer height: 0.1–0.2 mm
Temperature: ~200°C for PLA, ~240°C for ABS
Print speed: 40–60 mm/s
Ensures surface smoothness and precision fit.
c. Printing Process
Layer-by-layer fabrication followed by quality control checks using real-time monitoring (e.g., camera surveillance of the build).
d. Post-Processing
• Sanding for smoothness
• Protective coatings (e.g., clear varnish or colored finish)
• Final inspection for strength and alignment
e. Therapeutic “Slanting” Integration
The slanting technique adjusts the lens groove within the frame to accommodate angular deviation. It can be embedded digitally or manually (by sanding specific internal areas), enhancing visual alignment without altering lens geometry—an innovation best implemented with input from optometrists.
4. Challenges and Proposed Solutions
Challenge Solution
Material fragility (e.g., PLA) Use fiber-reinforced composites or reinforced internal structures
Accuracy limitations Use high-resolution printers and calibration
Custom fit Virtual simulations and patient-specific adjustments
Minor warping Post-print thermal creep correction (e.g., mild reheating and reshaping using molds or jigs)
5. Environmental and Economic Considerations
Criteria Traditional Manufacturing 3D Printing
Cost High for small batches due to molds Low due to direct-from-CAD flexibility
Time Slow due to mold setup Fast and iterative
Material Waste High due to subtractive methods Minimal due to additive nature
Sustainability Benefits:
• Recyclable or biodegradable materials (e.g., PLA)
• Localized production reduces transport emissions
• Defective parts can be reprinted without excess waste
6. Conclusion
This research demonstrates how integrating 3D printing and CNC methods can elevate the optical frame industry—enabling highly accurate, affordable, and customized solutions. The standout innovation of built-in slanting introduces a therapeutic dimension that was previously unattainable through traditional manufacturing. This advancement highlights the merger of clinical function with design aesthetics.
7. Recommendations
1. Further research into eco-friendly printing materials for wearable applications.
2. Enhanced printer precision (e.g., laser or micro-layer printing) to meet clinical specifications.
3. Mass customization systems for patient-specific frames.
4. University-industry collaboration to improve scalability, innovation, and patient outcomes.
