Underground drainage systems are essential for managing storm water, preventing flooding,
and protecting infrastructure. These systems often require filters to remove solid debris and
contaminants from runoff water before it reaches storm water drains, treatment facilities, or
natural bodies of water. Designing an efficient filter for underground drains is essential for
improving water quality and preventing blockages, ensuring long-term performance, and
minimizing maintenance needs.
This article outlines the key considerations for filter design in underground drainage systems,
including filter types, materials, and installation techniques as in Fig.1.

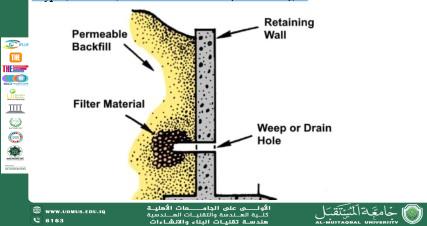

Fig.1 Filter Installation
1. Purpose of Filters in Underground Drainage Systems
Filters in underground drainage systems serve the following primary purposes:
1- Sediment Removal: Filters prevent sediment from entering the drainage system, which
can cause blockages and reduce the system’s efficiency.
2- Pollutant Reduction: Filters help remove pollutants such as oils, heavy metals, and other
contaminants that may be present in storm water runoff.
3- Maintenance of Drainage Efficiency: Filters help maintain the flow rate by preventing
clogging of the pipes and drains with debris.
4- Environmental Protection: By filtering out contaminants, filters play a significant role
in protecting local water bodies from pollution.


2. Types of Filters Used in Underground Drains
There are several types of filters commonly used in underground drainage systems,
depending on the specific needs of the drainage design and the type of contaminants being
filtered. These include:
a) Sediment Filters
These filters are designed to capture large particles and debris, such as leaves, gravel, and
sand. Sediment filters are often the first line of defense in storm water filtration systems.
b) Oil and Grease Separators
These filters remove oils and fats from the water, which are common contaminants in urban
runoff from vehicles and industrial areas. The separator works on the principle of gravity, where
lighter oils rise to the surface, allowing the water to flow through the filter.



c) Carbon Filters
Activated carbon filters are used to remove dissolved contaminants, such as volatile organic
compounds (VOCs) and odors, from storm water runoff. Carbon filters work through adsorption,
where contaminants are attracted and held by the surface of the carbon material.
d) Bio-retention Filters
These filters use vegetation and soil to filter and treat stormwater. They are an example of
green infrastructure and are designed to allow water to pass through layers of soil and plants,
removing pollutants along the way.
e) Permeable Pavement Filters
Permeable pavements allow water to pass through and infiltrate the soil below while filtering
out larger particles and debris. These systems often integrate with underground drainage systems
to manage runoff.
3. Key Design Considerations
When designing a filter for underground drains, several factors must be taken into account to
ensure its effectiveness and long-term functionality.
a) Flow Rate and Capacity
One of the primary considerations when designing a filter is the expected flow rate. The filter
should be designed to handle peak flow during storms while maintaining adequate filtration


capacity. This includes calculating the average and maximum storm water flows based on local
climate conditions and drainage area size.
b) Maintenance Accessibility
Underground filters must be easy to maintain, as they will accumulate debris over time.
Proper access points should be incorporated into the design for routine inspections, cleaning, and
replacement of filter media if necessary.
c) Material Selection
The choice of materials for the filter depends on the type of contaminants being filtered.
Materials should be durable, resistant to clogging, and able to handle the environmental
conditions of underground systems. Common materials include sand, gravel, activated carbon,
and synthetic filter fabrics.





d) Durability
The filter media should be designed to withstand the underground environment, including
exposure to moisture, chemicals, and temperature changes. Filters made of strong materials can
ensure longer service life and reduce the need for frequent replacements.
e) Hydraulic Performance
The filter should not restrict water flow significantly, as this could lead to water backup and
flooding. The hydraulic performance of the filter should be carefully designed to ensure that it
operates efficiently under varying flow conditions.
f) Environmental Impact
Sustainable and environmentally friendly materials and design methods should be prioritized
in filter construction. For example, using locally sourced natural materials, avoiding harmful
chemicals, and incorporating bio-retention systems can help reduce the ecological footprint of
underground drainage systems.
4. Installation Techniques
Proper installation of filters in underground drainage systems is crucial for ensuring their
efficiency. The installation process typically involves the following steps:
1. Preliminary Assessment: Before installing the filter, an assessment of the site conditions
is essential. This includes analyzing soil types, drainage areas, and expected flow rates.


2. Excavation: The location for the filter system is excavated to the required depth,
considering both the filter system's size and necessary access points.
3. Filter Placement: Once the excavation is complete, the filter media or components are
placed according to the design specifications. The system should be level and securely
positioned.
4. Connection to Drainage Pipes: The filter must be properly integrated into the drainage
network, ensuring water flows through the filter before reaching the underground drains.
5. Backfilling and Compaction: After installation, the system is backfilled with
appropriate materials, and compaction is performed to ensure stability.
6. Testing: Once the installation is complete, the system should be tested for proper
operation, ensuring it can handle expected flows without excessive clogging or
resistance.
5. Challenges and Solutions
While filter systems provide significant benefits to underground drains, there are some
common challenges that need to be addressed:
1- Clogging: Filters can become clogged over time, especially in areas with high levels of
debris. Regular maintenance, including cleaning and media replacement can help mitigate
this problem.
2- Cost: High-quality filter materials and installation can be expensive. However, investing
in durable filters can save costs in the long run by reducing the need for frequent repairs
and maintenance.
3- Space Constraints: Underground systems often face space limitations, which can affect
filter design. Innovative filter designs, such as modular systems or compact bio-retention
filters, can help overcome space challenges.
6. Conclusion
Filter design is an essential component of underground drainage systems, providing effective
means of removing contaminants and preventing blockages. A well-designed filter system not
only protects the environment but also ensures that underground drainage systems operate
efficiently for years to come. By considering factors such as flow rate, material selection,
maintenance, and environmental impact, engineers can design filters that meet both performance
and sustainability goals.
References:


- S. A. Ead, Yehia Abdelmonem, E. S. El- Mergawey, “STUDY OF THE CHARACTERISTICS OF
DRAINAGE FILTERS” Conference: 18th Canadian Hydrotechnical Conference, Challenges for
Water Resources Engineering in a Changing World, August 22 – 24, 2007
- Essien, A.E., Guo, Y., Khafagy, M. et al. Design and hydrologic performance estimation of highway filter
drains using a novel analytical probabilistic model. Sci Rep 14, 2350 (2024).
https://doi.org/10.1038/s41598-024-52760-7
- Kamal Radwan, Ibrahim MclwaJli, Abmed Al-SArawy, “A Study of Filter Drain Performance
for the Pollution Control of Urban Runoff” MansOllra Engineering Journal, (tv1EJ), Vol. 34,
No.2 , June 2009
